A Guide to the Capacitor Discharge Stud Welding Process

Capacitor discharge (CD) stud welding is a nearly instantaneous fastening process in which electrical energy is used to melt and join metal components in a highly durable weld. The capacitor discharge stud welding process is fast and efficient, producing robust welds for a wide range of industrial applications.

What is the Capacitor Discharge Stud Welding Process?

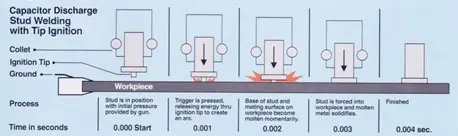

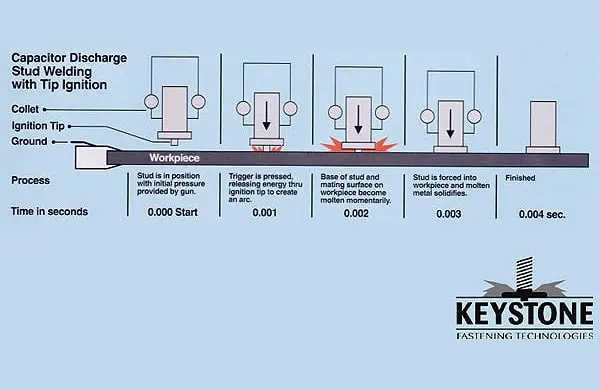

The capacitor discharge stud welding process creates an arc by rapidly discharging electrical energy through capacitors, often used for smaller-diameter weld studs and thinner base materials. First, a weld stud is placed against the base material. CD stud welding utilizes weld studs with a specialized tip for precision, managing weld time control, and producing consistent, automatic welds.
Energy stored in the weld gun is discharged through the weld stud, melting the entire diameter and part of the workpiece. Then, spring-loaded forces plunge the weld stud into the molten base material. The molten material solidifies and creates a high-strength fusion weld.

Capacitor Discharge Stud Welding Advantages

CD stud welding offers various advantages for fast and efficient fastening. Compared to other fastening methods, it is stronger and more reliable for heavy-duty manufacturing, construction, and fabrication operations. Benefits of capacitor discharge stud welding include:

• Produces secure, leak-proof, and permanent connections
• One-sided, aesthetically superior welds that won’t require finishing
• Complete fusion between weld stud and base material with load-bearing capabilities
• Won’t thermally distort, discolor, or burn through materials
• Compatible with joining dissimilar metals without complication
• Maintains material integrity as it does not require drilling, tapping, or other intrusive fastening
• Prioritizes user-friendly equipment and processes for cost-effective and efficient results
• Exceptionally fast, with the entire capacitor discharge stud welding process completed in milliseconds

Applications for CD Stud Welding Operations

Highly versatile, CD stud welding is used to produce secure and durable connections across an array of industries. The industries and applications that can benefit from capacitor discharge stud welding capabilities include, but are not limited to:

• Automotive: Attaches studs in car body assemblies, including brackets, clips, and other components.
• Appliance Manufacturing: Effective in fastening for the production of refrigerators, washing machines, and ovens.
• Aerospace: Manufactures critical components with high precision and minimal distortion.
• Electronics: Fastens studs to circuit boards, electrical panels, and other components.
• Metalworking: Highly useful for the primary function of attaching studs and fasteners to other metal surfaces.
• Maintenance and Repair: Can attach studs or components to existing metal structures for quick and easy repairs of various structures, like bridges or pipelines.
• Signage: Quickly affixes lettering, logos, and sign components and can be used where intricate detail is required.
• Food and Pharmaceutical Equipment: Ideal for use in manufacturing equipment where fixing on one side eliminates dirt traps.

Metal Materials Compatible with Capacitor Discharge Stud Welding

Materials that are suitable for capacitor discharge stud welding processes include a variety of metals and alloys. CD stud welding uses the following metals for various applications and targeted benefits:

• Low carbon steels, which are commonly used in manufacturing, construction and general fabrication.
• Stainless steels provide strong, precision welds, primarily in food processing, pharmaceuticals, and automotive industries.
• Aluminum and its alloys are prioritized in applications requiring quick, clean welds.
• Thin or delicate materials ensure accurate and controlled welding and produce no distortion.
• Zintec sheet can be welded effectively without extensive surface preparation.
• Ferrous and non-ferrous metals, including brass, copper, and titanium are compatible depending on requirements and welding parameters.

Types of CD Stud Welding Systems

At Southern Stud Weld, we have cutting-edge stud welding equipment to meet your application requirements. Our selection includes different capacitor discharge stud welding system configurations and a comprehensive supply of standard US and metric stud sizes for advanced fastening solutions in any project.
For routine applications, handheld systems feature standard handgun model styles to meet your needs. Additionally, we can provide custom-designed automated production systems to exact specifications in high-volume applications.

Capacitor Discharge Stud Welding Products at Southern Stud Weld

Our full suite of capacitor discharge equipment and accessories is designed to deliver precise, reliable connections in your stud welding operations. With capacitor discharge stud welding systems, weld studs, and welding accessories, we have everything you need for efficient and durable stud welding.

CD Stud Welding Systems

We develop advanced capacitor discharge stud welding systems designed for efficiency and reliability. CD stud welding equipment produces a near-instantaneous weld completed in milliseconds. Prioritizing the latest technology for high-quality fastening solutions, our CD stud welding systems are ideal for high-speed production environments.

Capacitor Discharge Weld Studs

The capacitor discharge stud welding process is compatible with weld studs ranging from #4-40 (M3) to 3/8-16 (M10). Our inventory includes a vast selection of metric and standard weld stud sizes, shapes, and weld studs in various materials to match the needs of your projects.

Welding Accessories

Our CD stud welding accessories offer additional flexibility to your capacitor discharge stud welding solutions. With CD welding accessories, the welding handgun can be set up for minimal changeover time when using different size weld studs. Shop accessories, including insulation accessories, adjustable legs and foot pieces, and more.

Choose Southern Stud Weld for High-Quality Stud Welding Solutions

Southern Stud Weld has been a leader in the stud welding industry for decades. We offer a wealth of technical expertise across industries that use stud welding processes and can provide meaningful assistance in your stud welding projects. With a commitment to quality, we have a proven track record backed by our years of hands-on experience.
Our patented offerings demonstrate the drive for innovation, supported by our partnerships with other industry leaders. We combine expertise and leverage state-of-the-art technology for cutting-edge solutions that add value to the industry. As an agile and efficient manufacturer, Southern Stud Weld specializes in short-run jobs and fast turnarounds, with product and service support to assist your stud welding processes.

Find Capacitor Discharge Stud Welding Equipment for Advanced Welding Operations

With over 40 years of experience, Southern Stud Weld understands the unique requirements of stud welding operations across various industries.  We supply a complete line of stud welding equipment, including CD systems, Drawn Arc equipment, SRM manufacturing solutions, and more, to meet your stud welding production requirements. Contact us to discuss specialized welding solutions that meet your needs, address potential welding challenges, or request a quote to begin your order.
