Drawn Arc Stud Welding Guns

Drawn arc stud welding guns, otherwise known as stud welding guns, are beneficial in fusing metal studs to a workpiece using an electric arc to create a strong, one-sided weld. The drawn arc stud welding process is especially useful for thicker materials and larger diameter applications. Drawn arc stud welding guns offer the ability to weld various stud sizes and materials with top precision and durability. With their unique ergonomic design, automatic adjustments, and performance reliability, drawn arc stud welding guns are versatile in working with ceramic ferrules, shielding gas, and short-cycle welding. Overall, these guns are best used for tough industrial welding applications.

Southern Stud Weld offers various drawn arc stud welding guns and drawn arc welding accessories for any industrial welding need. Contact us for more information about our drawn arc stud welding guns or request a quote for detailed pricing information.
Narrow Your Results By

Drawn Arc Stud Welding Guns Available

Southern Stud Weld provides four different types of high-quality drawn arc stud welding guns to pair with additional drawn arc stud welding equipment. Our drawn arc stud welding guns are built from top materials and designed to fit different drawn arc studs depending on your application. Each of our guns maintains unique capabilities to perform specified drawn arc welding processes for any of your industrial needs. View details of our drawn arc stud welding guns below.

BSK15 – Drawn Arc Auto Feed Weld Head

Southern Stud Weld’s BSK15 auto feed weld head drawn arc welding gun is specifically designed for automatic feeding studs up to M8 in diameter. The BSK15 is ideal for applications requiring high efficiency and automated stud welding. Perfect where automation is a necessity.

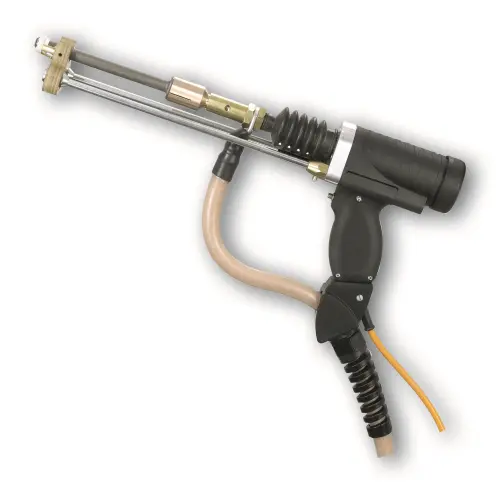

HP-314 – Standard Drawn Arc Stud Gun

The HP-314 standard drawn arc stud gun, offered by Southern Stud Weld, is an ergonomic and lightweight drawn arc stud gun designed for precision stud welding. The HP-314 is compatible with ceramic ferrule, shielding gas, and short-cycle welding. This gun is ideal for providing automatic adjustment for stud lengths and ensuring consistent and high-quality welds.

HP-319 – Drawn Arc Stud Gun with Dampener

Southern Stud Weld’s HP-319 drawn arc stud gun with dampener features hydraulic plunge damping for smoother and more controlled welds with consistent penetration. The HP-319 is suitable for a wider stud size range to offer increased stability. This gun is ideal for industrial stud welding applications where stability is crucial.

HP-1022 – Heavy-Duty Drawn Arc Stud Gun

The HP-1022 heavy-duty drawn arc stud gun is built for welding larger diameter studs from 3/8 to 1 inch in length. The drawn arc stud gun is engineered for heavy industrial applications with durability in mind. This gun is ideal for heavy-duty industrial welding where precision and ease among larger diameter studs are essential.

Drawn Arc Stud Welding Guns Applications

With the unique design and capabilities of drawn arc stud welding guns, various industries utilize their needs for strong, durable welds. Industrial applications requiring welding studs to thick materials and curved surfaces are ideal for drawn arc stud welding guns. Many metalworking industries with larger diameter applications that require more efficiency through an economical welding process would benefit from drawn arc stud welding guns. Industries that use drawn arc welding guns include:
  • Structural steel and construction
  • Automotive and transportation
  • Shipbuilding and marine industries
  • Heavy equipment and manufacturing

Southern Stud Weld is Your Drawn Arc Stud Welding Gun Provider

For over 40 years, Southern Stud Weld has produced high-quality welding equipment and specialty fastener solutions through innovative technologies that meet the demands of welding operations across industrial markets. We offer a wide range of models for different stud welding needs that provide durable, ergonomic designs for reduced operator fatigue. Our precision welding equipment contains automatic adjustments for consistent results and is suitable for various welding methods, including ceramic ferrule, shielding gas, and short-cycle welding.

Contact Us for Your Drawn Arc Stud Welding Gun Needs

Southern Stud Weld provides industry-leading drawn arc stud welding guns made with top materials for various applications. Contact us for more information about our drawn arc stud welding guns or request a quote for more specific options.
