Weld Heads
Weld heads are essential components for CNC stud welding systems. They are designed to be mounted within a CNC machining center for precision welded joints, providing high-quality, reliable fastening solutions. Automatic weld heads contain the welding electrode, secure the workpiece, and then generate an arc for a near-instant weld.
Want to know what auto-feed welding equipment is right for your applications? Contact Southern Stud Weld, and one of our knowledgeable representatives will be happy to assist you.
Available Auto Feed Weld Gun Systems
We carry weld heads and auto-feed weld gun systems for fast, efficient stationary stud welding. Depending on your operational requirements, this equipment can be designed and built for a custom solution that meets your standards.Auto Feed Weld Head Equipment
Auto-feed weld heads are designed for precision welding tasks. They provide consistent and reliable performance, offering an ideal solution for automated processes requiring high throughput.Handheld Auto Feed Weld Gun Systems
For more flexible and mobile welding operations, auto-feed stud welding hand guns offer manual control with semi-automatic feeding capabilities. It is a versatile option for your stud welding operations.Features and Specifications of Weld Heads
Our selection of weld heads and auto-feed weld gun systems deliver efficient and cost-effective stationary stud welding operations. Auto-feed gun systems and weld heads operate using Keystone stud welding power sources, providing automatic and semi-automatic with manual insertion stud feeding options.Compatible with capacitor discharge and drawn-arc stud welding methods, these systems can be customized to suit the needs of various tasks or built to include workpiece mounting devices, such as movable workholding fixtures, turntables, and more.
Stud Welding Range
- Stud Range: Up to 3/8”
- Stud Length: 1/4” – 1.25”
Operating Specifications
- Working Area: Varies based on setup
- Welding Method: Capacitor discharge (contact and gap), short-cycle, drawn-arc
- Working Lift (Welding Head): 3” (80mm)
- Compressed Air Supply: 6 bar / 90 PSI

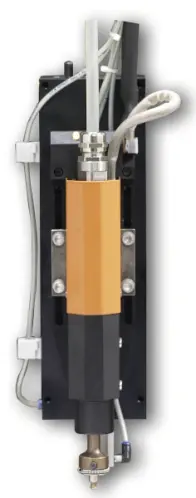

- Suitable Welding Heads: SIK-2, Auto Feed Gun
- Power Requirements: 110-250V, 50 Hz, 4A
Auto Feed Weld Gun System Industrial Applications
Many industries prioritize stud welding technology for its nearly instantaneous, reliable fastening capabilities. Stud welding assembly solutions are faster and more efficient than other fastening methods, with weld heads delivering exceptional precision and adaptability for any stud welding project. Industries served by auto-feed weld gun systems include:- Aerospace
- Industrial
- Consumer Products
- Electrical
- Automotive
