Tabletop Stud Welding Systems

Tabletop stud welding systems are compact to streamline precision welding operations. They are designed for limited spaces, are easy to handle with a comfortable operating layout for efficient stud welding, and offer solid capabilities for small batches and one-off manufacturing projects. We supply the KTS-2 tabletop stud welding machine for cost-effective, stationary stud welding.
Looking for a flexible, consistent, and repeatable production stud welding setup? Contact us to discuss your requirements and one of our knowledgeable representatives will be happy to assist you.

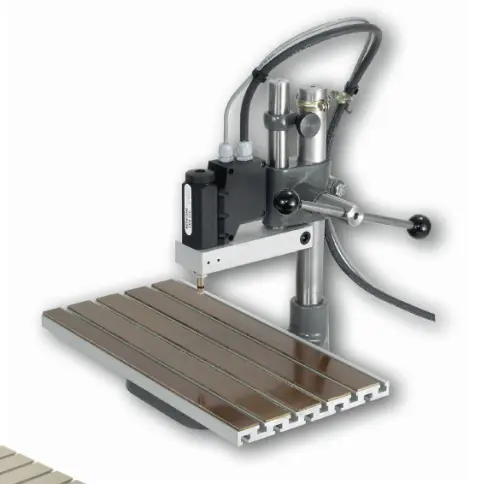

KTS-2 Tabletop Stud Welding Machine and Compatible Weld Heads

Designed for precision and adaptability, the KTS-2 tabletop stud welding system is excellent for stationary welding applications. The KTS-2 provides reliable and consistent performance in stud welding automation and production, providing an ideal solution for workshops and production lines. It demonstrates enhanced production quality, repeatability, and heightened productivity, with key benefits including:

• Compatible with all stud welding methods: capacitor discharge and drawn arc
• Compact and efficient, with increased capacity for production environments
• Customizable with optional features for improved flexibility and safety
• Precision welding capabilities for applications where accuracy is critical

Features and Specifications of Tabletop Stud Welding Systems

The KTS-2 can be equipped with workpiece mounting devices, including movable fixtures, turntables, and X-axis positioning components for added versatility. This tabletop stud welding system can feed studs automatically and semi-automatically, featuring manual insertion for increased flexibility, depending on application requirements.
With the option to include pneumatic workpiece clamps offers another layer of control, suitable for complex, high-accuracy stud welding applications. It is compatible with all Keystone stud welding power sources and SIK Series automatic welding heads, built to the following specifications:

Stud Welding Range:

• Stud Range: Up to 3/8”
• Stud Length: 5/16” to 1.25”

Operating Specifications:

• Working Area: 6” by 6”
• Welding Method: Capacitor discharge (contact and gap method), short-cycle, drawn-arc
• Working Lift (Welding Head): 3” (80mm)
• Compressed Air Supply: 6 bar
• Dimensions (WxHxL): 24” by 24”
• Weight: 60 lbs.
• Suitable Welding Heads: SIK-2

Optional Features:

• Pneumatic Workpiece Clamps for enhanced workholding flexibility.
• Light Curtain for improved safety and operation control.

Power Requirements:

• Electrical Supply: 230V/50hz, 16A

Industrial Applications of Tabletop Welding Machines

Automated and semi-automated stud welding production machines provide high-quality solutions to manufacturing operations. Our machines offer enhanced productivity and superior weld quality, producing various industrial applications. The KTS-2 tabletop stud welding machine delivers reliable, consistent, and high-accuracy welding capabilities to the following industries:

• Aerospace
• Industrial
• Consumer Products
• Electrical/Electronics
• Automotive

Choose Southern Stud Weld for Adaptable and Precise Tabletop Systems

For decades, Southern Stud Weld has been a global leader in stud welding, committed to driving innovation. Understanding the unique requirements of precision stud welding operations in various industries, we work with the latest technology to bring you state-of-the-art stud welding solutions suited to a variety of industrial operations. Our inventory includes one of the most comprehensive selections of standard and specialty weld sizes for stud welding applications to meet your specifications.

Contact Us for High-Accuracy Stud Welding Production Solutions

Southern Stud Weld offers vast technical expertise to the stud welding industry. With years of hands-on experience, we have nurtured unique partnerships to expand our capabilities and develop unique solutions, driving innovation and value to the industry. Our offerings cater to a wide range of industries and applications with superior precision and quality to meet the needs of your stud welding projects. Discover cutting-edge tabletop systems for a flexible and efficient production welding setup. Contact Southern Stud Weld or request a quote today.
