Drawn Arc Stud Gun with Dampner

High-Performance Stud Welding for Demanding Applications

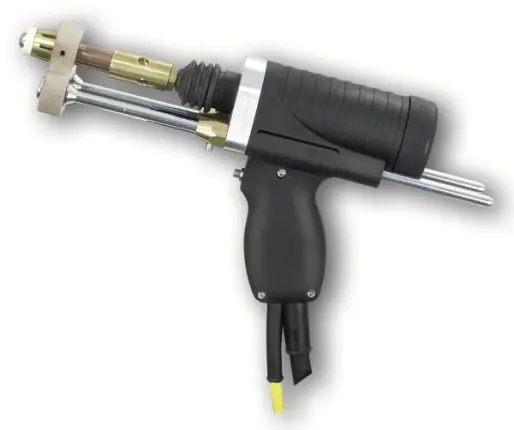

The HP-319 Drawn Arc Stud Welding Gun is built for precision, durability, and efficiency, making it ideal for heavy-duty industrial stud welding applications. Designed to accommodate ceramic ferrule, shielding gas, and short-cycle welding, this gun features adjustable hydraulic plunge damping, ensuring smooth, controlled welds with consistent penetration.

Key Features & Benefits

Versatile Stud Welding Capability

• With Ceramic Ferrule: Welds studs from 1/8” to 3/4” (3 to 19 mm)
• With Short-Cycle Mode: Welds studs from 1/8” to 3/8” (3 to 10 mm)
• With Shielding Gas: Welds studs from 1/8” to 5/8” (3 to 16 mm)

Enhanced Performance & Adjustability

• Automatic Stud Length Adjustment: Compensates for variations up to 5/16” (8 mm)
• Adjustable Arc Length (Lifting Range): 0.04” to 0.18” (1.0 to 4.5 mm) for precise control
• Adjustable Hydraulic Plunge Damping: Ensures stable and consistent weld quality
• Durable 16 ft (5 m) Cables: Includes 1/0 gauge weld cable and 18/4 gauge control cable for flexibility

Ergonomic & Lightweight Design

• Compact & Easy to Handle:
• Body Diameter: 2-3/8” (60 mm)
• Body Length (Excluding Chuck): 7” (180 mm)
• Body Height (Including Handle): 6-1/2” (165 mm)
• Lightweight Construction: Weighs only 2.8 lb (1.3 kg)

Applications of the HP-319 Stud Welding Gun

The HP-319 is ideal for industrial and structural stud welding, making it perfect for:

✔ Construction & Infrastructure – Structural steel, bridges, and buildings
✔ Automotive & Transportation – Vehicle frames and chassis welding
✔ Shipbuilding & Marine – Heavy-duty stud fastening for ships and offshore platforms
✔ Manufacturing & Heavy Equipment – Industrial machinery and custom fabrication

Why Choose the HP-319 Drawn Arc Stud Welding Gun?

✔ Wider Stud Compatibility – Supports up to 3/4” (19 mm) studs with ceramic ferrule welding
✔ Hydraulic Plunge Damping – Provides stable and consistent welds
✔ Lightweight & Ergonomic Design – Easy handling and reduced operator fatigue
✔ Reliable Performance – Engineered for high-quality, industrial applications

Order the HP-319 Stud Welding Gun Today!

Looking for a high-quality drawn arc stud welding gun? Contact us today for a quote or to discuss your application needs!
